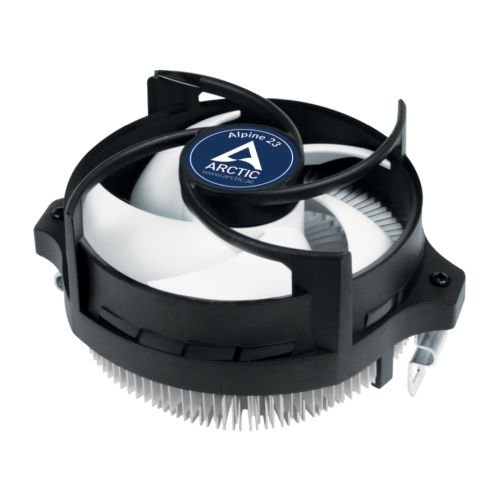

ARCTIC – Arctic Alpine 23 Compact Heatsink & Fan, AMD Sockets, Fluid Dynamic Bearing, 95W TDP

SKU: HEATARCALP23

Compact AMD CPU-Cooler


Improved Cooling Performance By New Production Process
The high thermal conductivity of aluminum is fully retained by a new type of extrusion. This new production process creates a powerful yet very compact radial heat sink. The particularly thin cooling fins of the new Alpine are fanned out in a Y-shape. This increases the surface area of the heat sink and therefore the cooling capacity.





Wide RPM Range
The Alpine 23 features a new motor technology with a very wide, PWM-controlled RPM range. This keeps the noise level at a minimum while guaranteeing maximum cooling performance when needed.




Lower Power Consumption & Minimum Vibration
The new Alpine 23 is powered by an updated motor and runs much more efficiently than its predecessors. Due to sinus-magnetizing the new motor creates just 5 % of the vibration from commutation of a regular DC-motor. These factors contribute towards saving energy, lowering the coil temperature and reducing vibrations to a minimum without compromising performance.





High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.





Extended Life Span
A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature.





Pre-Applied MX-2 Thermal Paste
The pre-applied, high-performance MX-2 thermal compound ensures fast and clean installation.




Easy And Tool-Free Installation
Thanks to the mounting clips, the installation is really easy. Alpine 23 is simply plugged onto the existing AMD retention modules and screwed tight.

Compare

£6.24

1108 in stock

Compare

Description

Currently have  1108 in stock!

Description

Specification

  • Type: CPU Air Cooler
  • AMD/Intel: AMD Only
  • Compatibility: “AM5, AM4, AM3(+), AM2(+), FM2(+), FM1”
  • TDP: Up to 95 Watts
  • Fan Connector(s): 4-pin
  • Fan Controller: PWM
  • Fan Bearing: Fluid Dynamic Bearing
  • Rotation Speed: 100 – 2000 RPM
  • Installation: Mounting clips
  • #Hide#LED Lighting: No
  • Colour: Black & white
  • Weight: Fins: Aluminium
  • Dimensions: (LxWxH) 98.6 x 121 x 65 mm
  • Fan Dimensions: 90 mm
  • Noise level: 0.3 Sone
  • Power: 0.06 A/12 V
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 0.3400 kg
  • Warranty: 6 Years
  • #Hide# AM5 Socket: Supports Socket AM5
  • #Hide#AM4 Socket: Supports Socket AM4
  • #Hide#AM3(+) Socket: Supports Socket AM3
