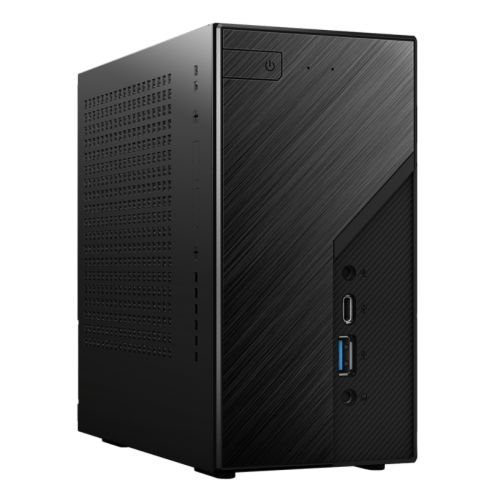

ASROCK – Asrock DeskMini X300 SFF Barebone PC, AMD AM4 (X300), 2x DDR4 SO-DIMM, 2x SATA, 2x M.2, VGA, HDMI, DP, USB-C – No CPU, RAM, Storage or O/S
DeskMini X300
- AMD AM4 Socket CPU – Renoir, Picasso, Raven Ridge, up to 65W
- Supports Overclocking Option with X300
- High-Speed DDR4-3200MHz Memory
- Dual Ultra M.2 (NVMe)
- 2 x 2.5" SATA 6Gb Hard Drive
- Support RAID 0/1 function
- HDMI, DisplayPort, D-Sub
- M.2 For Wi-Fi Module
- USB 3.2 Gen1 Type-C
Overclocking Option in BIOS
ASRock DeskMini X300 supports overclocking options. Improve system performance by tuning the core clock and release the potential of the AM4 APU.
Insane Memory Performance
ASRock DeskMini supports Dual Channel DDR4-3200+MHz (OC) memory, up to 64GB. Thanks to high speed memory and Radeon™ Graphics, DeskMini provides awesome 3D performance.
4X Storages
ASRock DeskMini supports up to 4 Storages
M2_1 M.2 (2280) –PCIe Gen3 x4
M2_2 M.2 (2280) –PCIe Gen3 x2/x4
2x 2.5” SATA 6Gb SSD/HDD Tray
Mini Home Data Center
DeskMini supports RAID 0/1 function! Build mini data center at home!
RAID 0 –offers superior I/O performance
RAID 1 –protects critical data in mirrored data
Heatsink on MOSFET
ASRock DeskMini features with Aluminum MOSFET Heatsink provides great heat dissipation to ensure system stable in loading.
Triple Display
DeskMini supports 3 display output simultaneously
Expanding desktop by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
USB Type-C
A Type-C USB 3.2 Gen1 connector for fast charging and delivering up to 5Gbps data transfer rates.
Optional upgrades (sold seperately):
DeskMini Addressable LED
DeskMini USB Hub
Rear Audio Cable
VESA Mount Kit
M.2 Wi-Fi Kit
USB 2.0 Cable
DeskMini USB Hub
Rear Audio Cable
VESA Mount Kit
M.2 Wi-Fi Kit
USB 2.0 Cable
Description
Currently have 11 in stock!
Description
Specification
- #Hide#Fully Built / Barebone: Barebone
- Tower / Small Form Factor: Small Form Factor
- Chassis: Asrock DeskMini Mini STX
- Processor: None
- Processor Details: “AM4 Socket – Renoir, Picasso, Raven Ridge CPUs
Max. TDP 65W
Support MAX Height 46mm CPU Cooler” - Chipset: AMD X300
- #Hide#Processor: None
- Memory: None
- Memory Details: 2 x DDR4 SO-DIMM Slots
Ryzen 4000 series – 3200MHz
Ryzen 3000/2000 series – 2933MHz
Max. 64GB - Hard Drive: None
- SSD Drive: None
- Optical Drive: None
- Supported Drives: 2 x 2.5″” SATA III
2 x Ultra M.2 (2280) – PCIe
1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module
RAID 0/1 supported - Operating System: No O/S
- Front I/O: 1 x USB 3.2 Gen1 Type-C
1 x USB 3.2 Gen1 Type-A
1 x Head Phone with MIC Jack
1 x MIC-In (RealtekALC233) - Back I/O: 1 x USB 3.2 Gen1 Type-A
1 x USB 2.0 Type-A
1 x VGA
1 x HDMI
1 x DisplayPort
1 x LAN - LAN: GB LAN
- Wireless: 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module – sold separately
- Bluetooth: –
- Power Unit: 1 x 120W/19V adapter
- Keyboard and Mouse: No
- Dimensions: 155 x 155 x 80 mm (1.92L)
- Additional Features: See Overview
- Accessories: 2 x SATA Data with Power Cable
1 x Screws Pack - Package Weight: 2.2000 kg
- Package Type: Retail
- Warranty: 2 Year Replacement Warranty
- #Hide#Memory: DDR4
