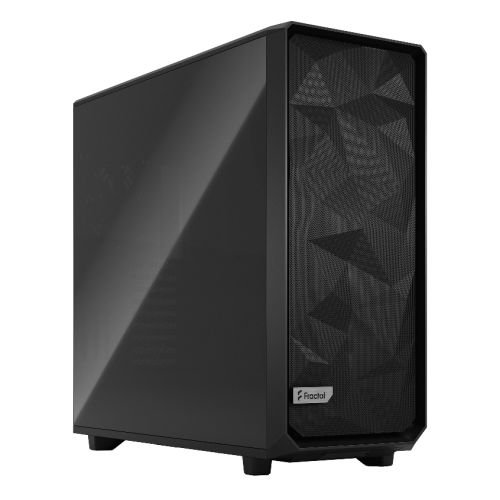

FRACTAL – Fractal Design Meshify 2 XL (Black TG Dark) Gaming Case w/ Dark Tint Glass Window, E-ATX, Angular Mesh Front, 3 Fans, Fan Hub, Detach. Front Filter, USB-C

SKU: CAA-FRME2XLDTG

Bigger, bolder and better? With more of everything, the Meshify 2 XL is ready to take on your most ambitious builds.


  • Iconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
  • Spacious and extensively adaptable dual-layout interior easily accommodates large motherboards up to and including E-ATX and SSI-EEB
  • Support for radiators up to 480/420 mm in front, 480/420 mm up top, or 280/240 mm in the base in the default Open Layout
  • Includes 6 HDD/SSD trays, 2 SSD brackets, and 2 universal Multibrackets for mounting up to 10 drives
  • Expandable to 16 trays and 5 SSD brackets with 2 Multibrackets installed in the top for a max of up to 23 drives in Storage Layout
  • New chassis design that opens up to fully expose the case interior on three sides for totally unhindered installation and cable routing
  • New front nylon filter that can be removed for increased airflow
  • New front panel design with hinged removable mesh filter and tether-free bezel for easier access to front fan mounts
  • Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
  • Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the case
  • Outstanding cooling capacity with a total of nine 120/140 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
  • Easy-to-clean high airflow nylon filters on the top and base with full PSU coverage and convenient front access
  • Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board
  • Versatile Multibrackets that convert any unused fan position to an HDD, SSD or pump mount
  • Three vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately
  • Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support
  • Tool-less, top-latching panels allow quick access while preventing accidental drops
  • Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup
Detachable front filter

  • The nylon filter is easily removed from the hinged mesh panel for increased airflow
  • Tether-free bezel for easier access to front fan mounts
  • Three pre-installed Dynamic X2 GP-14 fans and room for more (max 9x 140 mm / 11x 120 mm)
Superlative storage

  • Optional accessories allow expansion up to 18 HDDs and 5 SSDs in Storage Layout
  • The included Multibrackets lets you convert any unused fan positions to HDD, SSD or pump mounts
  • Tool-less, top-latching panels allow quick access while preventing accidental drops
Flexible dual-layout design

  • Convert to Open Layout and get more than enough room for your custom water loop with large reservoirs and radiators up to 480 mm
  • Support for radiators up to 480/420 mm (front), 480/420 mm (top) and 280/240 mm (base)
  • An expansive internal layout easily accommodates large motherboards up to E-ATX and SSI-EEB





Compare

£177.07

Out of stock

Compare

Description

Currently have  0 in stock!

Description

Specification

  • Form Factor: E-ATX
  • #Hide#Small Form Factor: No
  • Power Supply Wattage: No PSU
  • Motherboard Support: “EE-ATX, E-ATX, ATX, Micro ATX, Mini ITX, SSI-CEB, SSI-EEB”
  • #Hide#Window(s): Yes (Window)
  • Connectors / Controls: 1 x USB 3.1 Gen 2 Type-C
    2 x USB 3.0
    Audio I/O
    Power button
    Reset button
  • Drive Bays: 6 x 3.5″”/2.5″” – 18 positions total + 2 Multibrackets
    2 x 2.5″” – 5 positions total
  • Expansion Slots: 9 + 3 Expansion slots
  • Cooling System: Included
    Front: 2 x Dynamic X2 GP-14 140mm fans
    Rear: 1 x Dynamic X2 GP-14 140mm fan

    Fan Mounts
    Front: 4 x 120 / 3 x 140 mm
    Top: 4 x 120 / 3 x 140 mm
    Rear: 1 x 120 / 140 mm
    Bottom: 2 x 120 / 140 mm

  • .:
    Water Cooling options:
    Front: Up to 480 / 420 mm radiator
    Top: Up to 480 / 420 mm radiator
    Rear: 120 mm radiator
    Bottom: Up to 240 / 280 mm radiator
  • Colour: Black
  • Material: Left side panel: Tempered glass dark tint
    Right side panel: Steel
  • Compatibility: GFX Card:
    Storage layout: 359 mm
    Open layout: 549 mm (524 mm w/ front fan)

    Max CPU Cooler:
    185 mm

    PSU:
    250 mm (both HDD cages installed)

  • Weight/Dimensions: 14.1 kg
    (LxWxH) 600 x 240 x 566 mm
    w/o feet/protrusions/screws: 588 x 240 x 547 mm
  • Additional Features: See Overview / Video
  • Accessories: Accessory box
    User Manual
    Screw Box
  • Package Weight: 15.7500 kg
  • Warranty: 2 Years
