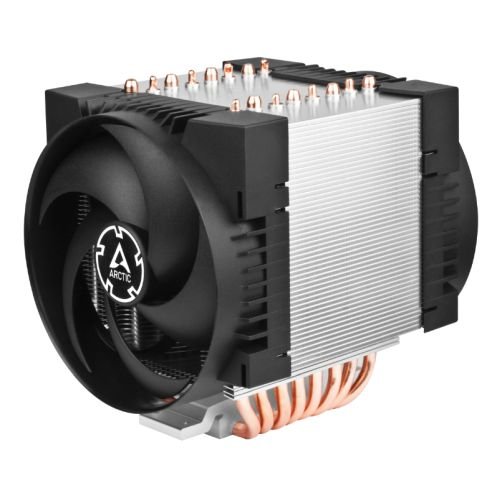

ARCTIC – Arctic Freezer 4U-M Rev 2 Multicompatible 4U Single Tower CPU Cooler, Intel/AMD Server CPUs, Continuous Operation, Dual Socket Compatibility, 350W TDP

£49.05

Description

Specification

  • Type: CPU Server Cooler
  • AMD/Intel: Combo
  • Compatibility: “Intel®: LGA 4189, LGA 4677

    AMD®: SP6, sTR5, SP3, TR4, sTRX4, sWRX8

    Ampere: LGA4926 (separate mounting kit required) “

  • TDP: 350W TDP
  • Fan Connector(s): 4-pin
  • Fan Controller: PWM
  • Fan Bearing: Double Ball Bearing
  • Rotation Speed: 400 – 2300 RPM
  • #Hide#LED Lighting: No
  • Colour: Black/Silver
  • LED Lighting:
  • Weight: 1275 g
  • Dimensions: “124 (L) x 156 (W) x 145 (H) mm
    Heat Pipe: Direct Touch, Ø 6 mm x 8
    Fan Cable Length: 200 mm”
  • Fan Dimensions: 120mm Fans x2
  • Noise level: 40 dBA
  • Power: Consumption: 2.88 W
    Fan Current | Voltage: 0.12A | 12V DC
    Fan Startup Voltage: 8V DC
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 1.6600 kg
  • Warranty: 6 Years
  • #Hide#sTRX4 Socket: Supports Socket sTRX4
  • #Hide#sTR4 Socket: Supports Socket sTR4

£49.05

Out of stock

SKU HEATARCFR4U-M Categories , ,

Description

There are currently 0x in stock!

Versatile Multi-Compatible Server Cooler

The Freezer 4U-M Rev. 2 stands as a multi-compatible server cooler, boasting an expansive contact surface and an enhanced mounting mechanism. It now offers compatibility with a wide range of Intel and AMD server processors, including Intel's LGA 4710, LGA 4189 and LGA 4677, as well as AMD's SP6, sTR5, SP3, TR4, sTRX4, and sWRX8 sockets. It also supports the Ampere Altra LGA4926*. Remarkably, despite its impressive cooling capabilities, the Freezer 4U-M Rev. 2 consumes a mere 2.88 watts, ensuring exceptional efficiency in cooling even the most powerful processors with up to 64 cores and a TDP of up to 350 watts.

*Freezer 4U-M Ampere Mounting Kit is required.



RAM Compatibility and Clearance
The Freezer 4U-M Rev. 2 offers a generous 53 mm of clearance for memory, allowing the use of RAM modules with moderate heatsinks. This space facilitates efficient airflow and ensures compatibility with various types of RAM.



Compact Design and Dual Socket Compatibility
With an optimised installation height of only 145 mm, it fits into both classic 4U server racks and most consumer 4U cases available on the market. The Freezer 4U-M Rev. 2 features a compact design with dimensions of just 156 x 124 mm. This also makes it suitable for dual-socket motherboards. To adjust the airflow direction if required, the fans can be easily swapped over.

Powerful Fans in Push-Pull Configuration

The installed PWM fans benefit from all the advantages of the award-winning P series. Designed for static pressure, the fans are ideal for the Freezer 4U-M Rev. 2's high fin density and provide efficient heat dissipation in push-pull mode, even in power-hungry applications. Especially office workstations benefit from the quiet fans. The dual configuration also allows for inherent redundancy and protects the system from total shutdown caused by heat.

Designed for continuous operation

Both fans of the Freezer 4U-M Rev. 2 are equipped with dual ball bearings, which allows for 24/7 continuous operation without the slightest compromise in performance. This type of bearing is much more resistant to contamination and wear caused by high temperatures than conventional sleeve bearings or Fluid-Dynamic bearings and is therefore the perfect choice if you want to ensure fault-free continuous operation.

Premium Thermal Paste Included

The Freezer 4U-M Rev. 2 comes with MX-6 thermal paste. ARCTIC's Ultimate Performance thermal paste reduces the heat build-up between the heat spreader of the CPU and the cooler. The thermal paste is neither conductive nor capacitive and therefore absolutely safe to use.
